Ewing Architectural Series Outrigger Cone Tapered Aluminum Flagpole

Maximum Strength & Visual Impact for Building Facades

Make an unforgettable architectural statement with the Architectural Series Outrigger Flagpole. Proudly manufactured in Canada by Ewing Flagpole Co. Inc., this heavy-duty system projects your flag outward at a classic 45-degree angle, maximizing visibility from street level. Specifically engineered for demanding applications, higher elevations, and high-wind environments, it is the ideal choice for corporate headquarters, civic centres, university campuses, and historic landmarks.

Enhanced Architectural Taper & Heavy-Duty Wall Mount

Engineered for superior rigidity and wind resistance compared to standard commercial models, this flagpole features a substantial 4″ base diameter tapering down to 2.5″ at the top. This enhanced wall profile distributes structural stress evenly across the shaft while maintaining refined proportions.

The system is anchored by Ewing’s massive O-200 4″ Outrigger Wall Bracket, cast from high-strength aluminum to secure the 4″ pole base firmly against intense Canadian gusts, heavy ice, and severe weather.

Complete External Halyard Hardware & Premium Finial

Each set is fully equipped with commercial-grade, weather-resistant hardware:

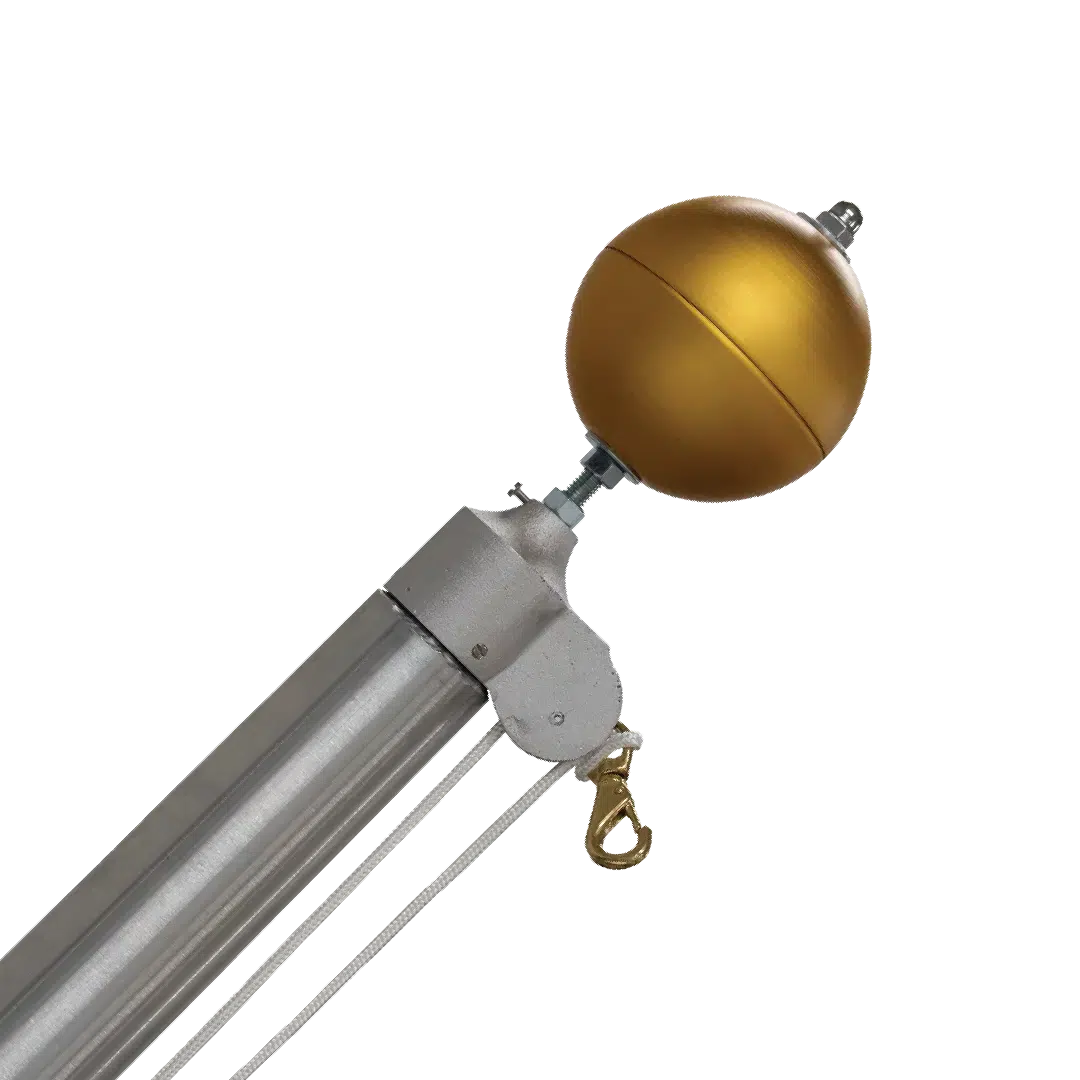

• 6″ Gold Anodized Aluminum Ball: Comes standard with a prominent 6-inch gold ball top to match the scale of the 4″ base. (Clear anodized silver is available as an option).
• Fixed Single Top Pulley: Smooth-operating top fitting for easy raising and lowering of your display.
• External Halyard & Heavy-Duty Cleat: High-strength, UV-resistant rope paired with a sturdy cleat to secure your line.
• Solid Bronze Flag Snaps: Two marine-grade bronze snap hooks that resist corrosion and hold your flag securely in place.

Customization Options:

1. Choose Your Length:

• 6 Foot & 8 Foot: Perfect for lower facade levels, entry pillars, and compact building faces.
• 10 Foot & 12 Foot: Extended reach providing high visibility on multi-storey commercial facades.
• 15 Foot: Maximum projection for grand architectural displays and large flag sizes.

2. Select Your Ball Top Finial:

• 6″ Gold Anodized Aluminum Ball (Standard): Bold, traditional metallic presentation.
• 6″ Clear Anodized Aluminum Ball (Optional): Sleek, modern silver accent.

3. Select Your Finish:

• Standard Satin Brushed Aluminum: Clean, classic metallic finish.
• Anodized Options: Clear or Bronze anodized finishes available for added resistance against oxidation, salt spray, and atmospheric wear.

Product Highlights:

• Canadian-Made Heritage: Backed by Ewing’s nearly two centuries of trusted manufacturing excellence.
• Enhanced Architectural Specs: Thicker 4″ base construction engineered for increased wind load capacity.
• 45-Degree Angle Display: Projects flags cleanly away from the building face for optimal drape and visibility.
• Includes Heavy-Duty O-200 Bracket: Purpose-built 4″ aluminum wall mount included.
• Corrosion-Resistant Hardware: Features bronze flag snaps and weather-tested components.

Specifications:

• Product Type: Outrigger External Halyard Cone Tapered Flagpole
• Series: Ewing Architectural Series
• Lengths: 6′, 8′, 10′, 12′, 15′
• Base Outer Diameter: 4″
• Top Outer Diameter: 2.5″
• Mounting Bracket: Ewing O-200 (4″ socket, 45° angle)
• Ball Finial: 6″ Gold Anodized (Standard) or Clear Anodized (Optional)
• Hardware Included: Top pulley, external halyard rope, cleat, 2 bronze snaps
